Deckma Hamburg Oil-in-Water Monitors
Market-leading 15ppm bilge alarm monitors and oil-in-water monitoring systems, certified to IMO Resolution MEPC.107(49). Over 45,000 units installed worldwide.
🛢️45,000+ Units Installed ✅ MEPC.107(49) Certified 🔧 TBU Calibration Service
ABOUT DECKMA
The Market Leader in 15ppm Bilge Alarms
Deckma Hamburg GmbH has been supplying oil-in-water monitors and systems to the marine and industrial markets since the early 1970s. With over 45,000 OMD bilge alarms supplied worldwide, Deckma is the undisputed market leader in 15ppm monitoring technology.
Their appliances are tested and approved according to IMO Resolution MEPC.107(49) and certified by the US Coast Guard, the German authority BG-Verkehr, and numerous other international authorities including Canadian, Chinese, Russian, and European Community bodies.
Deckma's innovative OMD-series monitors can distinguish between oil particles, solid particles, and water turbidity on a continuous basis — providing comprehensive real-time monitoring of effluent water quality.
PRODUCT RANGE
OMD Series Monitors
Deckma offers a comprehensive range of oil-in-water monitors for marine bilge systems, tanker deballasting, and industrial applications.

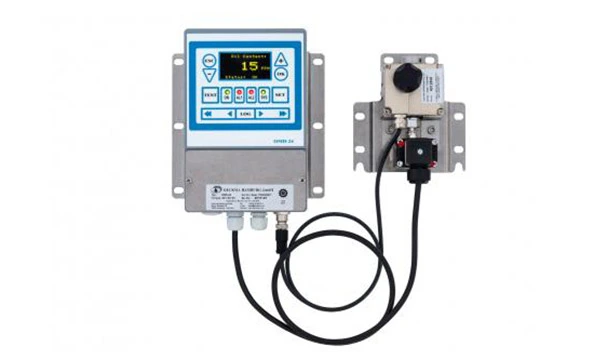

OMD-24 Bilge Alarm
The current-generation 15ppm bilge alarm monitor. Designed for use with oily water separators. Two-component system with Computer Unit and Measuring Cell. Two works-adjusted alarms at 15ppm (adjustable to 10ppm or 5ppm). USCG Certificate of Approval.
MEPC.107(49)
USCG Approved
OMD-2008 Bilge Alarm
15ppm bilge alarm monitor with Computer Unit and Measuring Cell on a stainless steel support with integrated Valve Assembly. Available with Flow Control (FC) variant featuring a flow sensor in the drain line of the Measuring Cell.
MEPC.107(49)
Integrated Valve
OMD-32 Oil-in-Water Monitor
Designed for use with oil-water separator units requiring monitoring beyond 15ppm. Supplied with 2 works-adjusted alarms at 10ppm (other set points like 100ppm adjustable on site). Based on proven OMD-series technology.
Industrial Applications Adjustable Set Points
HOW IT WORKS
Measuring Principle
All Deckma OMD-series monitors use advanced optical measurement technology to continuously analyze the oil content in water samples.
1
Sample Intake
A representative sample from the oily water separator flows through the Measuring Cell at an optimal rate of approximately 2 liters per minute.
2
Optical Analysis
The optical measurement system continuously analyzes oil particle concentration, solids, and turbidity in the sample — distinguishing between different contaminant types.
3
Alarm & Control
When oil content exceeds the set alarm point, visual alarms activate at the front panel and relay contacts switch — triggering the three-way valve to recirculate water back to the bilge tank.
TBU SERVICE
15ppm Monitor Calibration & Service
TBU is an official service station for inspection and service of Deckma 15ppm monitors in the BeNeLux area.
Our Deckma Services
Periodic calibration of OMD-11, OMD-21, OMD-24, OMD-2005, and OMD-2008 Oil Content Meters — Inspection and service on board or in our Rotterdam workshop — Supply of genuine Deckma spare parts (measuring cells, computer units, cables) — Functional testing and verification — 24/7 emergency service support.
Need 15ppm Monitor Service?
Contact TBU for certified calibration and service of your
Deckma oil-in-water monitors. We service vessels in the
BeNeLux area and perform calibrations in our Rotterdam
workshop.
